type FD acc. to DIN EN ISO 13918

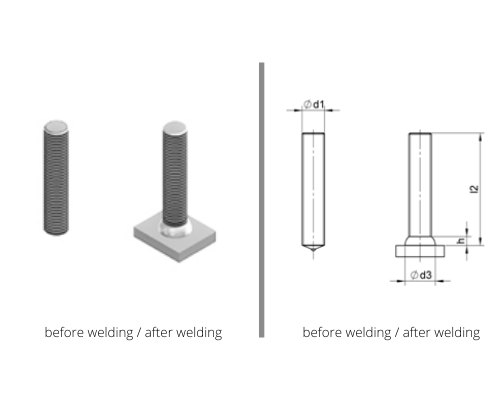

Threaded stud with full thread

Dimensions

Description	Length
M6	15-100 mm
M8	15-100 mm
M10	15-100 mm
M12	20-100 mm
M16	25-100 mm
M20	30-100 mm

*d3 and h are approximate values.
